Biasi
Pre-mixed condensing boiler Basica Cond
  • Icona Plus

    MODULATION 1:5

  • Icona Plus

    25 kW - 30 kW

  • Icona Plus

    HEATING WATER

  • Icona Plus

    DOMESTIC WATER

  • Icona Plus

    14,7 ÷ 17,6 L / min (DOMESTIC HOT WATER PRODUCTION)

  • Icona Plus

    NATURAL GAS / LPG

  • Icona Plus

    ENERGY RATING

Documentation Request info

Basica Cond completes the BIASI condensing premixed range: perfect for under-floor systems and for radiant systems with mixing units. Basica is the compact condensing boiler that guarantees high efficiency, low consumption and respect for the environment. Available to produce domestic hot water and heating and in power ranges of 25 and 30 kW.

Main features

  • Primary condensing exchanger in stainless steel with aluminium coating to offer maximum resistance to corrosion
  • Burner with total premixing, manufactured in stainless steel (NOx class 6)
  • Modulation 1:5 Natural Gas and LPG
  • DHW exchanger with stainless steel plates
  • 8-litre expansion vessel
  • High efficiency pump with low energy consumption
  • Integration with BIASI solar system by means of solar kit
  • Analogical pressure reading
  • Set up for remote control and external probe

Brass compact hydraulic group. Inlet unit with motorised valve, integrated bypass and filing valve of the system. ERP circulator with manual pump release in the return group.

Control Panel

  • Winter/Summer/Off selector
  • Heating temperature regulator
  • DHW temperature regulator
  • Digital pressure reading (reads on pressure gauge of the boiler)
  • Screen display of DHW and heating temperature
  • Display of fault diagnostics, lockout conditions and fault log

The display works according to the following modes:

  1. INFO
    - available information referred to the operating status and failure data
  2. OFF PROGRAMMING
    Programmable parameters for generator / installation and user SET
  3. INSTALLER PROGRAMMING
    Generator parameters
  4. SERVICE PROGRAMMING
    Parameters for authorized service centres.

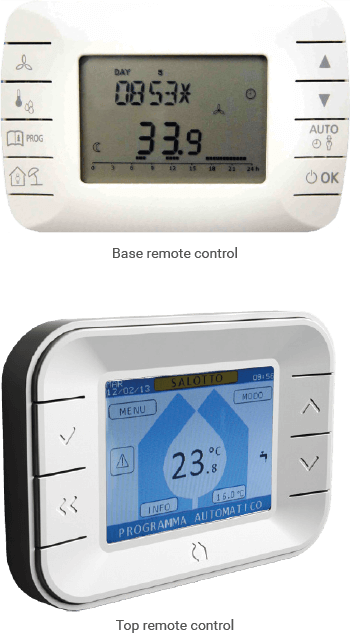

Remote controls

Basica Cond range offers 2 remote controls of Class V, in a Basic and Top version with weekly timer thermostat control up to 4 programmable periods with independent temperatures, in addition to the remote of all the information of the boiler display

×
