Standard efficiency combination boiler RinNova Premium 28 S
  • Icona Plus

    MODULATION 1:3

  • Icona Plus

    28 kW

  • Icona Plus

    HEATING WATER

  • Icona Plus

    DOMESTIC WATER

  • Icona Plus

    16,1 L / min (DHW)

  • Icona Plus

    NATURAL GAS / LPG

  • Icona Plus

    ENERGY RATING

Technical data Documentation Request info

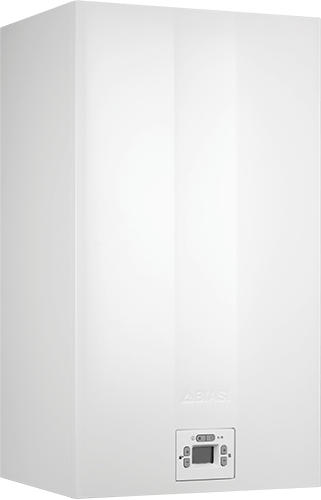

RinNova Premium is the wall-mounted boiler for heating and the production of DHW. It is available with a sealed chamber with a complete output range (24, 28 and 32 kW). RinNova Premium is suitable for any house, from a villa to a small apartment.

Biasi has developed an innovative digital control panel, a simple user interface with a list of useful information for the user as well as immediate programming procedures to be used by the installer.

This new and modern design and the compact dimensions of the whole range make RinNova Premium suitable to be installed in any environment.

Main features

  • High efficiencies (sealed chamber model ★★★ conforming to Efficiency Directive 92/42 EEC and Legislative Decree 311/06)
  • High circulation, laminar primary copper heat exchanger
  • DHW exchanger with stainless steel plates
  • Protection rating IPX5D (sealed models)
  • Integration with BIASI solar system by means of solar kit
  • Innovative digital control panel with graphic interface and keys
  • Analog pressure reading
  • Provision for remote control and external probe

Control Panel

  • Winter/Summer/Off selector
  • Heating temperature regulator
  • DHW temperature regulator
  • Analog pressure reading
  • Screen display of DHW and heating temperature
  • Display of fault diagnostics, lockout conditions and fault log

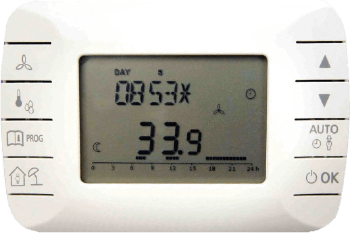

Remote control and thermoregulation

The new remote control (optional) allows the boiler to be controlled by customising its operation depending on different requirements.
Two keys will let you regulate the temperature of the hot water produced without having to go through tedious mixing operations. The ambient temperature is easy to set using two keys. With one special key, you can discover the temperature of the domestic environment.
By connecting the external probe directly to the boiler you can benefit from climate regulation. RinNova Premium boiler will adjust the water temperature in the system to external climatic conditions, ensuring the desired ambient temperature is reached without any wastage and optimising consumption. The use of climate regulation also produces a rise in the regulation efficiency, increasing the value of your home.

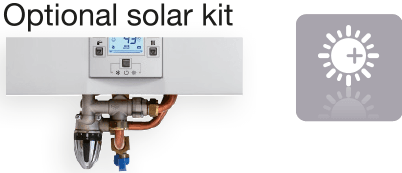

Integration with the solar kit

RinNova Premium can be easily combined with a solar system using the BIASI solar kit. Quick and easy to install, it does not require electrical parts and allows integration of the solar system with the boiler to be optimised, so that intervention only takes place when necessary to ensure the required comfort temperature.

★★★ (Efficiency Directive 92/42 EEC)

RinNova Premium is a very efficient boiler. The primary copper heat exchanger with five countercurrent pipes makes the entire BIASI range stand out in the market. The heat output modulation ensures low gas consumption and optimizes operation on the basis of the requirements for heating and DHW.


Included in the supply

- Boiler supporting bracket and cardboard template

Technical data

Nominal heating/d.h.w. heat input
kW
29
Minimum heat input (Hi) for heating
kW
14
Minimum d.h.w heat input (Hi)
kW
14
Maximum output power for heating/d.h.w
27,1
Minimum output power for heating
kW
12,6
Minimum output power for d.h.w
kW
12,6
Nominal efficiency 60 / 80 ºC
%
93,4
Min. efficiency 60 / 80 ºC
%
90,2
Efficiency At 30 % of load
%
92,5
Heat loss at the chimney with burner operating
Pf (%)
6,2
Heat loss at the chimney with burner operating
Pfbs (%)
0,2
Heat loss towards the environment through the casing with the burner operating
Pd (%)
0,4
Energy efficiency
***
Methane G20
m³/h
3,07
Propane G31
kg/h
2,25
Adjustable temperature (heating)
°C
50-80
Max. operating temp.
°C
90
Maximum pressure
kPa
300
Minimum pressure
kPa
30
Available pressure difference (at 1000 l/h) *At minimum useful power
kPa
21
Temp. Minimum - maximum (domestic hot water)
°C
30-60
Maximum pressure
kPa
1000
Minimum pressure
kPa
30
Maximum flow rate (ΔT=25 K)
l/min
15,5
Maximum flow rate (ΔT=35 K)
l/min
11,1
Minimum flow rate
l/min
2,5
specific d.h.w flow rate (ΔT=30 K)*… *Reference standard EN 625
l/min
13,1
Max. flue gas temperature at 60/80 ºC
°C
142
Max. flue gas mass flow rate
kg/sec
0,0207
Min. flue gas mass flow rate
kg/sec
0,0228
Max. air mass flow rate
kg/sec
0,0201
Min. air mass flow rate
kg/sec
0,0225
*Value refer to tests with 80 mm 1 + 1 twin pipe discharge Methane gas G20 and heat input in d.h.w. Mode
Voltage
V
230
Frequency
Hz
50
Power consumption at nominal heat input
W
150
Power consumption at minimum heat input
W
148
Power consumption in stand-by
W
3
Degree of protection
IPX5D
Height
mm
703
Width
mm
400
Depth
mm
325
Weight
kg
32,4
Water content in boiler
dmᵌ
2
Boiler type
B22 C12 C32 C42 C52 C62 C82
Coaxial air/flue gas duct ø
mm
60/100
Twin pipe air/flue gas ø
mm
80/80
Coaxial air/flue gas duct to roof ø
mm
80/125
×
