RinNova Adaptive 35 S A+
17,0 L / min (DOMESTIC HOT WATER PRODUCTION)
NATURAL GAS / LPG
INTEGRATED SOLAR OPERATION
RinNova Adaptive is the new range of BIASI wallmounted condensing boilers. High performance due to its innovative heat exchanger designed to provide high efficiencies that last over time. Easy to use thanks to the digital control panel with a large display, designed to communicate with the user both easy and convenient.
It is available in the combined versions for heating and DHW production (S models) and only for heating (SV models - but predisposed to sanitary with external boiler) RinNova Adaptive has a complete heat output range, 25, 30 and 35 kW S models and 16, 20, and 30 kW SV models, both with very compact dimensions: 700x400x300 mm.
Remote temperature control
Comfort at your fingertips

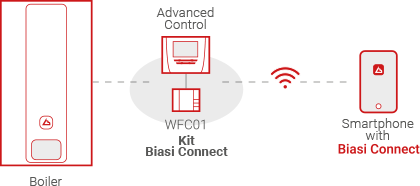

“Biasi Connect” KIT and App
Thanks to the BIASI Connect App, it is possible to control the boiler remotely. To use it is necessary to have the Biasi Connect KIT in addition to the advanced remote control. The evolved control (class V) allows modulating the water flow temperature of the system according to the room temperature and the outside temperature.
What are the advantages?
- Reduction of consumption, energy saving and extreme flexibility: the control is flexible according to one’s needs and daily habits. Needs and daily habits. You can also regulate with a click the temperature of the hot water
- Awareness of your installation: you can always Real-time monitoring of the correct operation of the Operation of the heat generator
- Safety: You can see in real time any anomalies can be seen in real time, together with the corresponding error code. Thus, you can intervene immediately and when possible remotely
"BIASI Connect" Kit
Is a WiFi “Connection Device” which, operating in the domestic WLAN network, allows the control of the room thermoregulation and of the boiler operation, both locally and remotely, through our dedicated APP.
Simplicity of installation and use
For the installation of the “BIASI Connect” kit and for the configuration and use of the the use of the App, please consult the instruction, installation and use of ‘’Biasi Connect”.
The App can be downloaded from the store of your device:
The ‘’home’’ screen shows the room temperature and system status. On the right the menu side status.
The Timing allows you to set a time period of time for which we can vary the status of the system and temperatures.
The ‘’Boiler’’ screen displays the status of the temperatures and other information about the boiler.
Example of an error reported by the App, with explanatory text.
- Boiler with single-circuit stainless steel primary exchanger with nojunctions and/or welds that maintains high efficiency even on older systems
- New combustion system with patented gas-adaptive technology (Advanced Adaptive Gas Combustion Control A²GC²). The electronics continuously analyze the combustion (CO2) through the flame signal by acting on the gas valve and the fan, to ensure correct combustion in all conditions of use. The electronics allow the boiler to be easily adapted to the various types of gas without having to operate with mechanical transformation kits
- Instant production of sanitary hot water with dedicated plate exchanger
- Sanitary pre-heating function: faster hot water delivery
- User interface with display and multi-function keys for adjustment and parameter setting
- By-pass as standard, easy to inspect
- Chimney protection system: electronic management of flue gas overtemperatures, guaranteeing maximum chimney protection
- Intubation on flues: particularly suitable for operation in flues requiring intubation with high pressure drops
- Minimum polluting emissions (class VI - EN 15502-1)
- Sliding temperature operation optional external probe
- Low consumption modulating heating circulator (ErP Ready - Class A)
- Digital flame control with three reignition attempts in case of blocked operation due to lack of flame detection (methane configuration)
- Three-piece removable casing for easier maintenance or inspection
- For SV versions: possibility of setting the maximum power that can be delivered to the external tank
- 1. Double probe fumes safety
- 2. Expansion tank
- 3. Burner
- 4. Air/Gas mixer
- 5. Fan
- 6. Siphon condensate
- 7. Steel frame monocoque
- 8. Brass hydraulic unit
- 9. Control panel with Adaptive Gas electronic
- 10. Adaptive Gas Valve
Gas Adaptive Technology
Less consumption, less efficiency, less emissions
The innovative Adaptive Gas technology, which all Rinnova all models in the Rinnova range are equipped with boilers to different types and qualities of gas. As well as detecting the flame, the electrode also detects the characteristics of the gas and automatically adapts the combustion parameters to maintain maximum efficiency, with a consequent reduction in consumption and emissions compared to traditional control systems. The Adaptive gas system makes the boiler ready for operation for operation with any type of gasa without any transformations.
- Automatic gas regulation
- Adaptation to gas quality change
- Clean combustion
- Only one model suitable for natural gas and LPG, that allows to optimize the warehouse
In traditional boilers the combustion values are detected and adjusted only when undergoing a maintenance. Moreover, the composition of mains gas is not always constant, and it can cause inefficiencies in the operation of the boilers that have no combustion control devices, undermining the reliability, the savings and the quality of emissions. Thanks to the Gas-Adaptive system, the new BTP condensing boilers control the combustion electronically, which allows them to best manage the gas and air supply at any time by automatically adjusting the CO2 level.

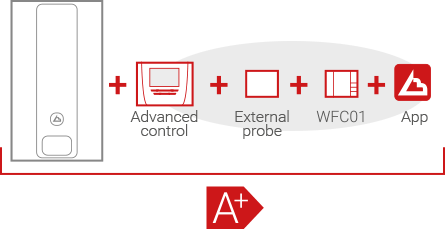

A+ class option, with iControl Sysyem (Available from March 2022)
Energy efficiency at the highest level
All models in the Rinnova Adaptive range are also available in the comprehensive “iControl” option, the climate control which modulates the water temperature according to the room and external temperature, which thanks to the Wi-FI system and the Biasi Connect App makes it possible to manage remotely with a smartphone the heating system, optimising consumption, raising the energy class of the boiler to A+.
A Plastic-FREE production
For a sustainable environment
An important element that has managed the entire design phase of the new Rinnova Adaptive boiler is a strong focus on the circular economy. This is why we used components with a higher recycling rate, eliminating the use of plastic as much as possible. The plastic assembly, for example, has been replaced with a brass assembly, which is fully recyclable. The boiler shells are made of cardboard instead of polystyrene.
- Winter/Summer/Off selector
- Heating temperature regulator
- DHW temperature regulator
- Digital pressure reading
- Screen display of DHW and heating temperature
- Display of fault diagnostics, lockout conditions and fault log
- Display of recommended filling and filling guide
- Display of annual maintenance expiry
- Enabling sanitary pre-heating
The display works in the following modes:
Info mode displays the following information:
- Sanitary/heating temperatures choose by the user
- Flue gas temperatures
- Domestic water flow rate
- Fan speed
- Months remaining before maintenance
- Percentages of pump modulation
- Outdoor temperature (in case of connected outdoor probe)
- Value of K (in case of connected external probe)
The programming mode allows you to modify the boiler parameters.
• BOILER PARAMETERS
Modification of boiler parameters
• HAMMER SWEEP
Possibility of setting 4 levels of boiler operation for combustion checks
Automatic boiler calibration
• HYDRAULIC CIRCUIT DEAERATION
Facilitation for deaeration of the system in the installation phase
List of errors recorded by the boiler during operation operation

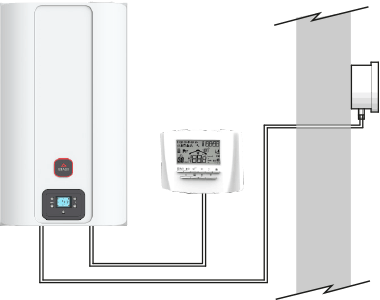

Climatic adjustment (with optional external probe) and (remote) room adjustment to allow proper management of the water temperature in order to reduce consumption and consequently a reduction in emissions. The use of climate regulation also produces a rise in the regulation efficiency, increasing the value of your home.
High circulation, mono spiral primary heat exchanger

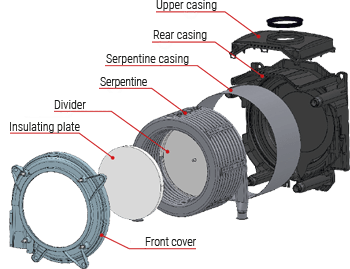

Biasi has introduced in 2017 the new stainless-steel heat exchanger for condensing boilers to the market: Round. Round is a compact monothermal heat exchanger based on a stainless-steel coil with an oval cross-section.
The heat exchanger consists of a combustion chamber, condensing zone and an insulated metal disc protected with silicon glass fibres separating the two areas. The use of a single stainless-steel belt to produce the coil, including the input/output connections, provides the following advantages:
- Accumulation of dirt and debris is prevented
- Water flow rate is distributed evenly and ensures a uniform thermal exchange
- The water flow rate is constant for the entire service life of the product
- Reduction in the head losses with optimised circuit
The robustness and ease with which these heat exchangers can be cleaned are just two of the strengths of the product given that it can be used on new installations as well as on an old system in the case of a substitution
Round integrates the round flow function in which the water produces a centrifugal effect for cleaning the internal walls of the mono spiral. The fact that there are no parallel circuits ensures easy “washing” operations of the heat exchanger and the elimination of any air present in the installation circuit.
